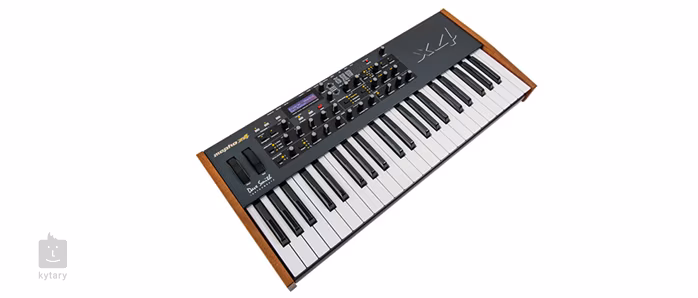

Sequential MOPHO X4

It's a polyphonic Mopho keyboard!

Mopho x4 is the newest addition to DSI's revered line of analog subtractive synthesizers. Building upon the same award winning voice architecture of the Mopho and Mopho Keyboard, the Mopho x4 boasts huge sound and 4 voice polyphony in an ideally sized, portable, and elegantly designed package. Use it to create huge unison basses, creamy leads, maniacal sequences, and ethereal pads.

4 times the voice 4 your pleasure

Each of Mopho x4's four voices is composed of two analog oscillators, two sub octave generators, selectable 2- or 4-pole famed Curtis low-pass filter, three 5-stage envelope generators, four LFOs, a re-latchable arpeggiator, and a 16 x 4 step sequencer. Its voice also comes packed with 20 modulation sources and almost 50 destinations!

FM the filter to create metallic bell-like sounds and use the feedback path to add subtle or destructive harmonic content to your sound. Mopho x4's 100% analog signal path is powerful, monstrous, and sonically dynamic!

Work less, play more

Mopho x4 is intuitive and inviting. Every parameter is fully programmable and editable from the front panel. The controls are logically laid out, lending themselves to quick access so you can tweak knobs without missing a beat.

The x4's full sized 44-note semi-weighted keyboard has aftertouch and velocity sensitivity. The sturdy full sized pitch and mod wheels are freely assignable and sport smooth reliable action.

It grows with you

Expand Mopho x4's polyphony using it's Poly Chain port. Mopho, Tetra, and Prophet '08 can all be connected to the x4 to increase its voice count. You can Poly Chain up to three Tetras with Mopho x4 to create a 16 voice analog super synth!

The Mopho x4!

Dave Smith Instruments is the only company pioneering and producing fully programmable polyphonic analog synthesizers. In fact Dave's been at it for 35 years!

Designed and manufactured in San Francisco, Mopho x4 has the high quality sound and build for which DSI is renowned. From its feature packed analog voices and unmatched sonic versatility to its refined design and engaging interface, you won't find a polyphonic analog synthesizer like this anywhere else.

Synthesizer Features

100% analog signal path

Two oscillators per voice capable of producing sawtooth, triangle, saw/triangle, and variable pulse width square waves, with hard sync

Two sub-octave generators per voice (one octave below oscillator 1 and two octaves below oscillator 2)

One classic Curtis low-pass filter per voice (switchable 2- or 4-pole) with audio rate modulation, self-oscillating in 4-pole mode

Analog VCAs

Three envelope generators per voice (ADSR plus delay)

Feedback loop per voice with programmable level and gain

White noise generator

4 LFOs per voice

Gated 16 x 4 step sequencer per voice (one sequence per program)

Arpeggiator

Glide (portamento): separate rates per oscillator

Full-sized, 44-note (F to C), semi-weighted keyboard action with velocity and aftertouch

Full-sized modulation wheel and spring-loaded pitch wheel

Fully programmable with four banks of 128 read-only factory programs and four banks of 128 user programs (1,024 total)
